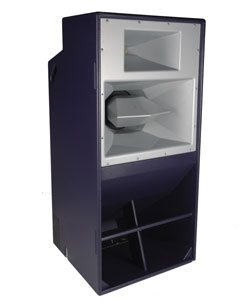

　　FUNKTION ONE---Resolution 4 T

　　Resolution 4 T is a three-way low-mid-treble speaker, which is completely suitable for performances in thousands of medium-sized venues. It is most commonly used in occasions where the horizontal dispersion angle of the two speaker groups is 80° to 90°. It can also be used as a delay speaker or close-fill sound in the R 5 T system during large-scale performances. The size of R 4 T is the same as that of R 5T and R1 8. Therefore, it can be installed together with the suspension system of R 5T, which makes the system easier to install and adjust the angle. The revolutionary suspension system is integrated separately Make every single loudspeaker, there will be no loss of connectors, connectors, latches or tools, etc. Alternatively, the system can be safely set up as a stacked speaker system on the stage floor. R 4 T This powerful speaker is a three-way low-mid-high part of a four-way crossover system. It can be used with F218, F1 21, and F22 1 and other low-frequency speakers.

　　If you don't need a suspension system, you can choose the simplified version R 4 E for fixed installation.

　　Features:

　　Full horn-loaded, high-efficiency speakers

　　Funk t ion - One design neodymium magnet driver

　　Integrated built-in box hoisting system

　　A built-in speaker cable is hidden in a small hole on the back of the speaker when not in use

　　Same size as Reso lution 5 and 18

　　There is a wheel version available for purchase

　　There are optional gray or black cloth nets

　　①Driver: 12", frequency band: 114-445Hz,

　　Sensitivity (1w@1m): 105d8, recommended amplifier power (rms)*: 300W,

　　Nominal impedance: 8Ω

　　②Driver: 8", frequency band: 445-5k77Hz

　　Sensitivity (1w@1m): 108d8, recommended amplifier power (rms)*: 200W,

　　Nominal impedance: 16Ω

　　③Driver: 1", frequency band: above 5k55Hz

　　Sensitivity (1w@1m): 109d8, recommended amplifier power (rms)*: 50W,

　　Nominal impedance: 16Ω

　　Frequency response ±3dB: 114Hz-18kHz

　　Weight: 46kg (106 lbs)

　　Nominal diffusion angle: 50°horizontal X25°vertical

　　Interface: EP6 female socket and an EP6 male plug speaker lead

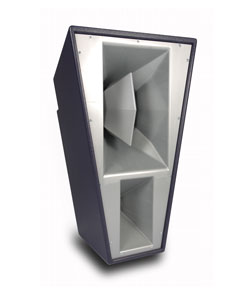

　　Resolution 4D Downfill

　　Resolution 4D Downfill is designed for use with Resolution 5 pendant line arrays. It has an expansive vertical coverage that perfectly covers the first row of seats. Its unique and avant-garde cone-shaped box design makes the speakers as close as possible to form a consistent wave front and make the speaker group have the aesthetic feeling of a spherical group. Like other Resolution Touring loudspeakers, it is equipped with a full set of hanging parts for hanging between cabinets.

　　Features:

　　1. Unique appearance speaker and speaker can be as close as possible

　　2. Wide vertical coverage angle

　　3. Two-way dual-amplification system

　　4. Full horn load design

　　5. Funktion - One design neodymium magnet driver

　　6. Revolutionary design built-in hoisting system

　　7. There are optional gray or black cloth nets
