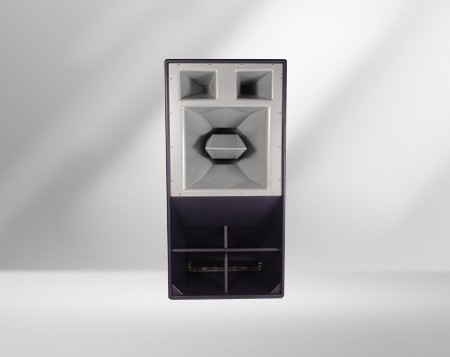

Resolution 5E is a very cost-effective speaker, which is very suitable for fixed installations or mobile performances.

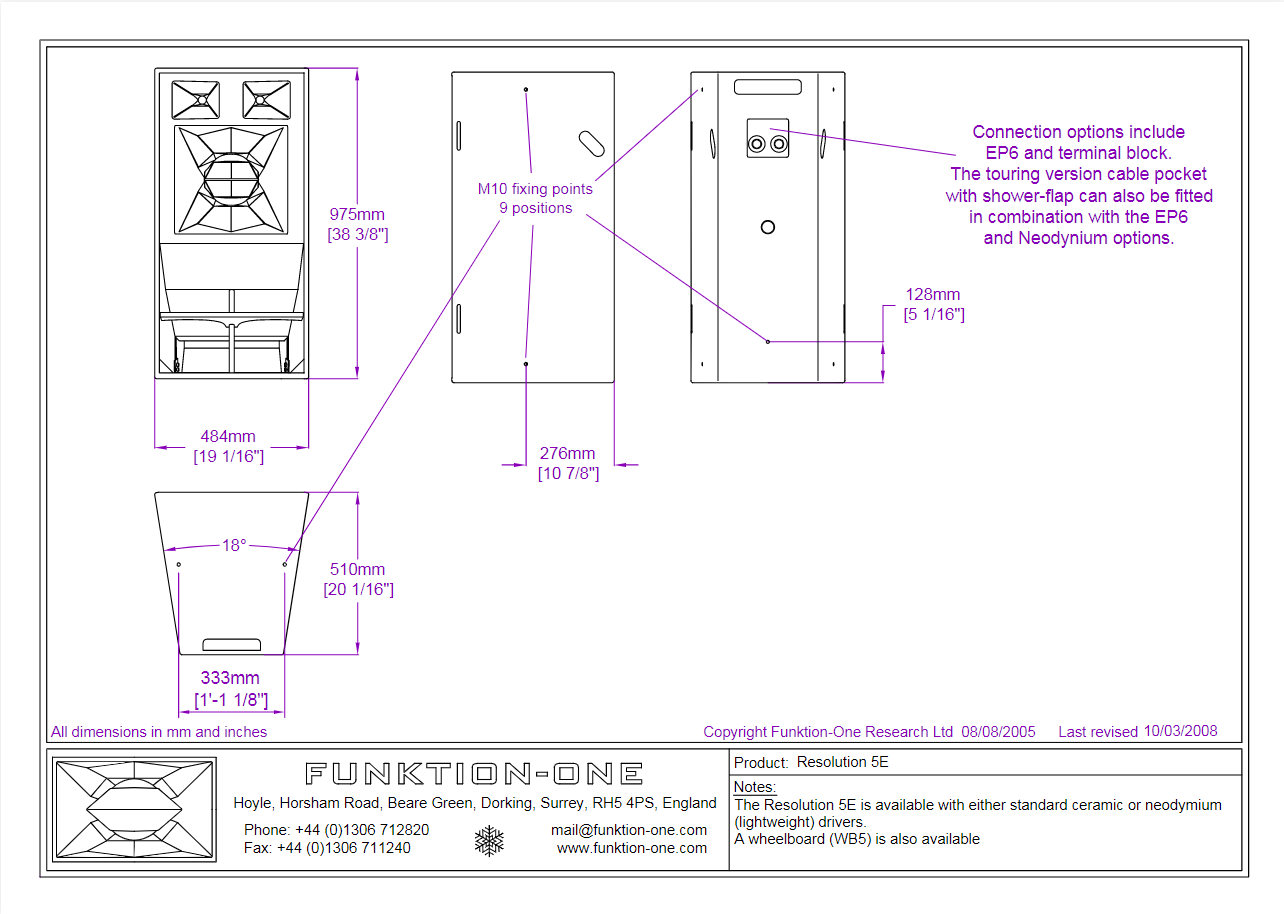

Resolution 5E is a very cost-effective speaker, which is very suitable for fixed installations or mobile performances. The cabinet design is between R5T and R5S, but the performance is the same as R5T. Its shape is the same trapezoid as R5T, but it does not have the hardware of the built-in hanging system. In addition, you can also purchase external hanging hardware, so that the R5E can perform freely regardless of where it is used or does not require hanging. In addition, when the situation is not suitable for hanging, you can also purchase floor stacking boards and place multiple R5Es on the floor stacking system.
characteristic:
•Ceramic magnet or Qin magnet drive can be selected
•Can be used for mobile performances, or fixed installation
• The same sound quality as the mobile series R5T
• If necessary, optional hanging hardware
•Wheel plate option (standard configuration for R5T)
• There are optional floor stacking boards
•Fabric net option
• The system can be used with R4DE and R18E
driver | Frequency band | Sensitivity 1w@1m | Recommended power amplifier （rms）* | Nominal impedance |
12" | 114-445Hz | 105dB | 300W | 8Ω |
8" | 445-7k55Hz | 111dB | 200W | 16Ω |
1" | 5k77Hz-above | 113dB | 50W | 16Ω |
*AES standard
Frequency response ±3dB: | 114Hz-18kHz |
Weight (neodymium magnet steel): (Ceramic magnet): | 49kg（108lbs） 60kg（132lbs） |
Nominal diffusion angle: | 25°horizontal×20°vertical |
interface: | EP6 female socket and an EP6 male plug audio lead |
