Resolution 2 SHCar stereo Vendor

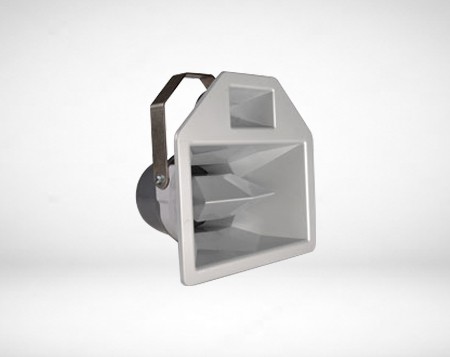

Resolution 2 SH is a mid-to-high frequency skeleton speaker in the Resolution 2 series. It implements the small but powerful output characteristics of the cabinet. It can easily present music in the frequency band above 250Hz. It can be compatible with Funktion-One's F118 and F215. Or the BR118's bass series can be used in combination as a main speaker, or in a larger sound reinforcement system to delay the back field

Project Details

Resolution 2 SH is a mid-to-high frequency skeleton speaker in the Resolution 2 series. It implements the small but powerful output characteristics of the cabinet. It can easily present music in the frequency band above 250Hz. It can be compatible with Funktion-One's F118 and F215. Or the BR118's bass series can be used in combination as a main speaker, or in a larger sound reinforcement system to delay the back field.



characteristic:

•Built-in passive frequency divider to reduce the usage of power amplifier and active frequency divider

• Funktion-One design 8" and 1" drive

•Standard stainless steel U-shaped mounting frame

• There are stainless steel meshes available for purchase

• There is a 100V fixed-rate version available for purchase

• There is also R2EH birch cabinet version for purchase



driver

Frequency band

Sensitivity

1w@1m

Recommended power amplifier

(rms)*

Nominal impedance

8"

250Hz-6k5Hz

106dB

200W

12Ω

1"

6k5Hz-above

107dB

50W




*AES standard

Frequency response ±3dB:

250Hz-18kHz

weight:

13kg(29lbs)

Nominal diffusion angle:

50° horizontal × 25° vertical

interface:

Industrial grade spring terminal block or Speakon NL4

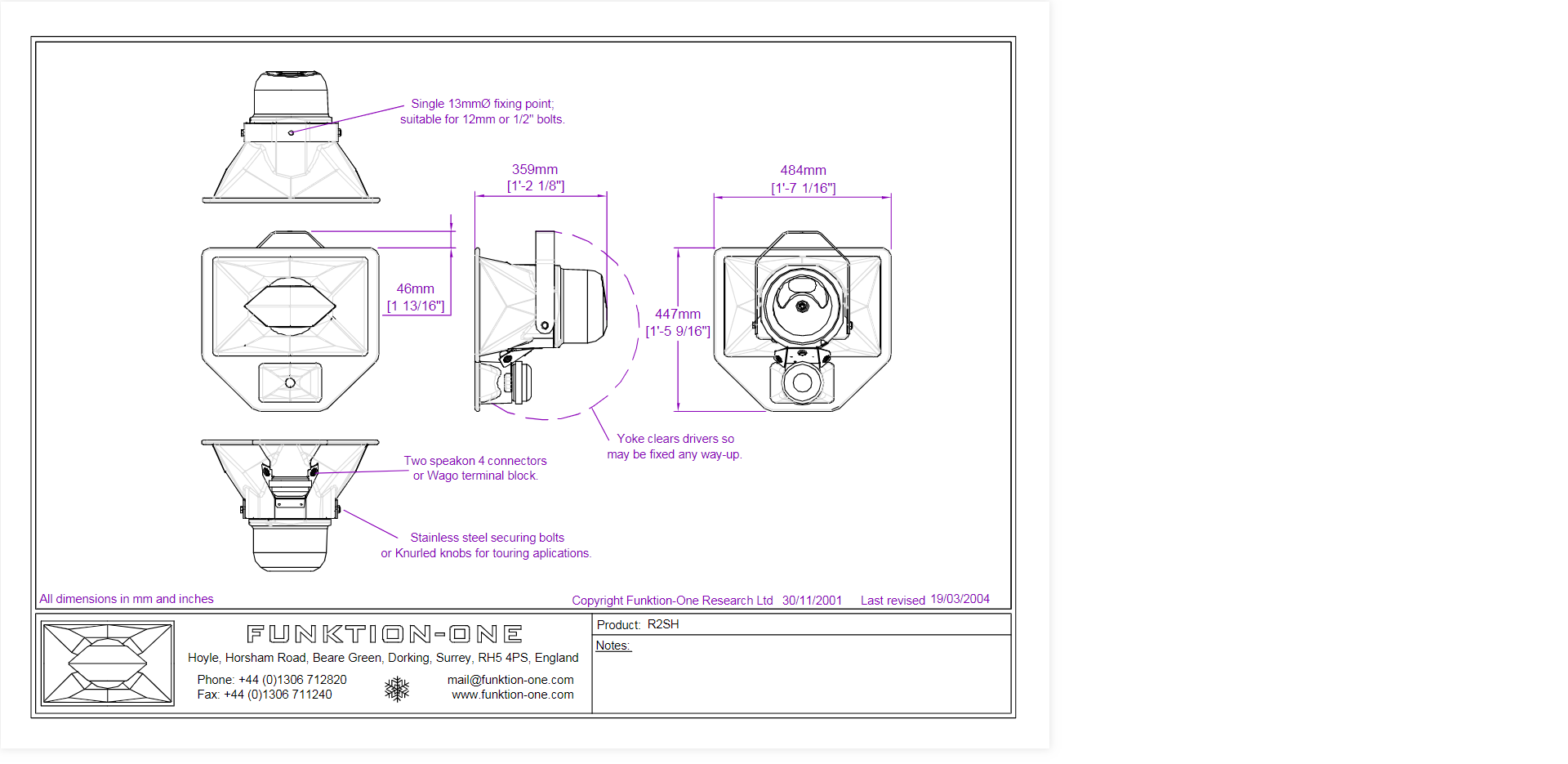

 Resolution 2 SH(图1)
