F118 MK2 Brand bar audio sales

F118  MK2 is a single 18" version of F218. If the venue is not suitable for using F218 speakers, you can switch to F118  MK2 .

Project Details

F118 MK2 is a single 18" version of F218. If the venue is not suitable for the use of F218 speakers, you can switch to F118 MK2. Now Funktion-One has improved F118 to create F118MK2, which handles the low-frequency horn load more finely, and It also greatly improves the heat dissipation problem of the driver coil and improves the technical indicator parameters of the driver. It is small and easy to handle, but provides solid, high impact, high analysis and pure low frequency. F118 MK2 has additional options for use with F101 , F1201, F88, R1 and R2SH rod type mounting sleeves used at the same time. If outdoor use is required, optional hanging hardware can be used to hang F118 MK2, which can be used with other mid and high frequency speakers, such as the low frequency of AX88 Extend the speakers.



characteristic:

• Well-tested horn load design, and new adjustments

• Brand new drive with improved heat dissipation function

•Small size and powerful

• Funktion-One design driver

•Integrated handle

• Face mesh options

•Pulley options

• Rod type mounting sleeve option (35mm diameter)

driver

Frequency band

Sensitivity

1w@1m

Recommended power amplifier

(rms)*

Nominal impedance

18"

25-200Hz

103dB

450W



*AES standard

Frequency response ±3dB:

50Hz-280kHz

Weight (neodymium magnet steel):

(Ceramic magnet):

45kg(99lbs)

50kg(110lbs)

structure:

18mm birch compression board

interface:

2 × Speakon NL4

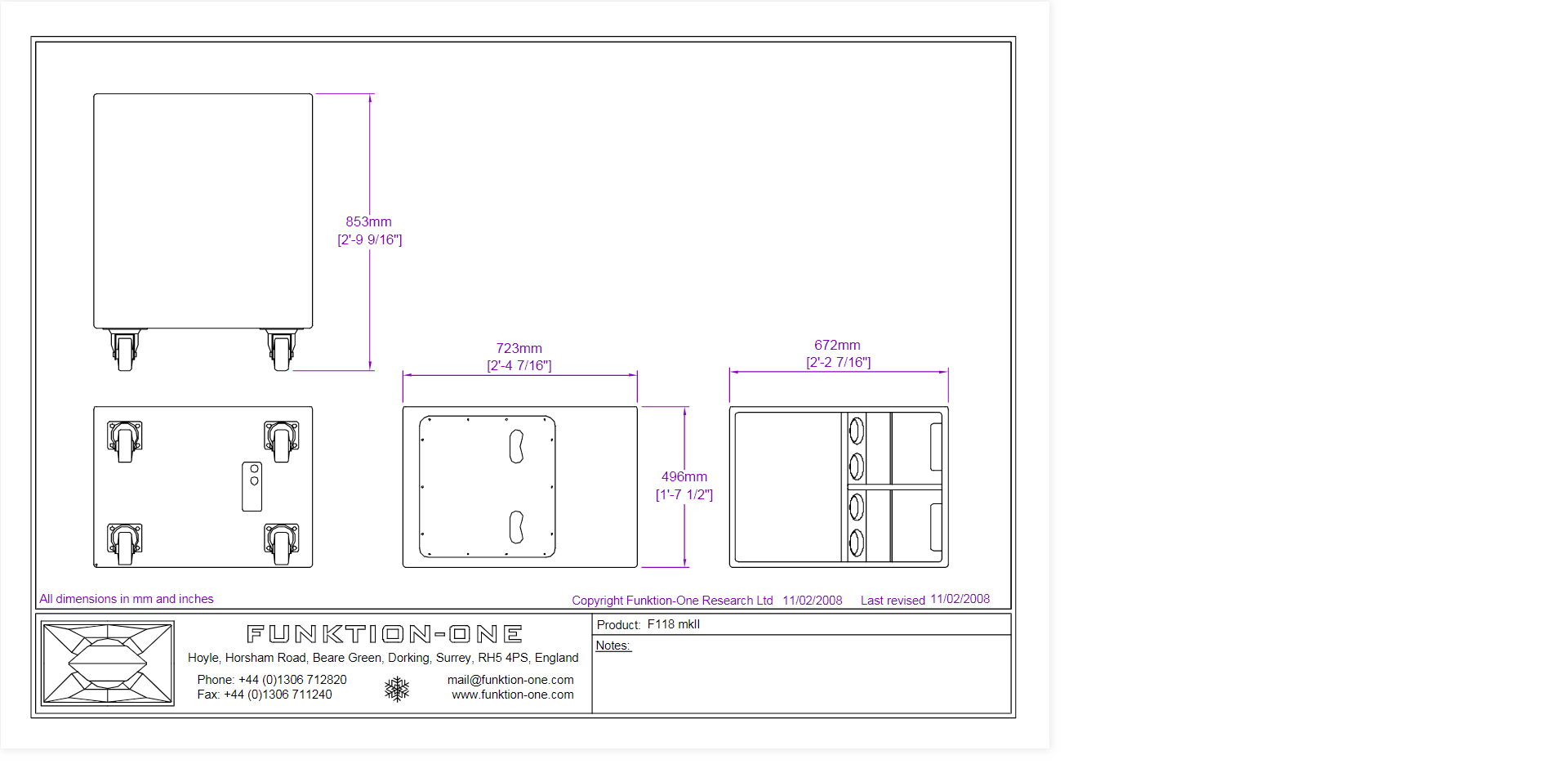

F118 MK2(图1)
