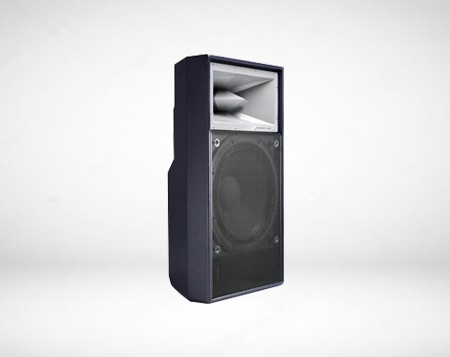

Resolution 1.5 ktv bar sound Vendor

Resolution 1.5 is a two-channel full-range speaker. It is further developed and designed based on the success factors of Resolution 1. It has a horizontal projection angle of 80°. Even though the cabinet of Resolution 1.5 is relatively small, it has excellent low-frequency output.

Project Details

Resolution 1.5 is a two-channel full-range speaker. It is further developed and designed based on the success factors of Resolution 1. It has a horizontal projection angle of 80°. Even though the cabinet of Resolution 1.5 is relatively small, it has excellent low-frequency output. Funktion-One's unique 5" paper tray high/medium frequency unit and 80° axe-shaped waveguide, coupled with a sturdy 18" low frequency driver, is a high-efficiency two-way full-range speaker. Like R1, it uses a 5" paper tray mid-frequency drive, which can eliminate the compression drive. The 5" drive can reduce the crossover point to 590Hz, making the low-frequency drive's energy conversion process particularly smooth. In addition, Funktion-One's low-frequency load technology uses 18" low-frequency drivers, but only the volume of 15" driver speakers. Like other Funktion-One speaker systems, Resolution 1.5 does not need to use equalization to correct the frequency response curve, making the sound analysis extremely detailed. It is suitable for places where only one speaker is placed on each side of the stage such as theaters, entertainment venues, churches, etc.



characteristic:

• Very low distortion rate

•Wide projection angle

• Funktion-One design neodymium magnetic driver

• There is a 35mm socket at the bottom

• There are nets available for purchase

• There are PX1.5 passive crossovers available for purchase

driver

Frequency band

Sensitivity

1w@1m

Recommended power amplifier

(rms)*

Nominal impedance

18"

55-595Hz

102dB

400W

8Ω **

5"

520Hz-above

110dB

75W

12Ω **



*AES standard

**The total rated impedance when using passive crossover is 8Ω

Frequency response ±3dB:

55Hz-15kHz

weight:

29kg(64lbs)

Nominal diffusion angle:

90° horizontal × 25° vertical

interface:

2 × Speakon NL4

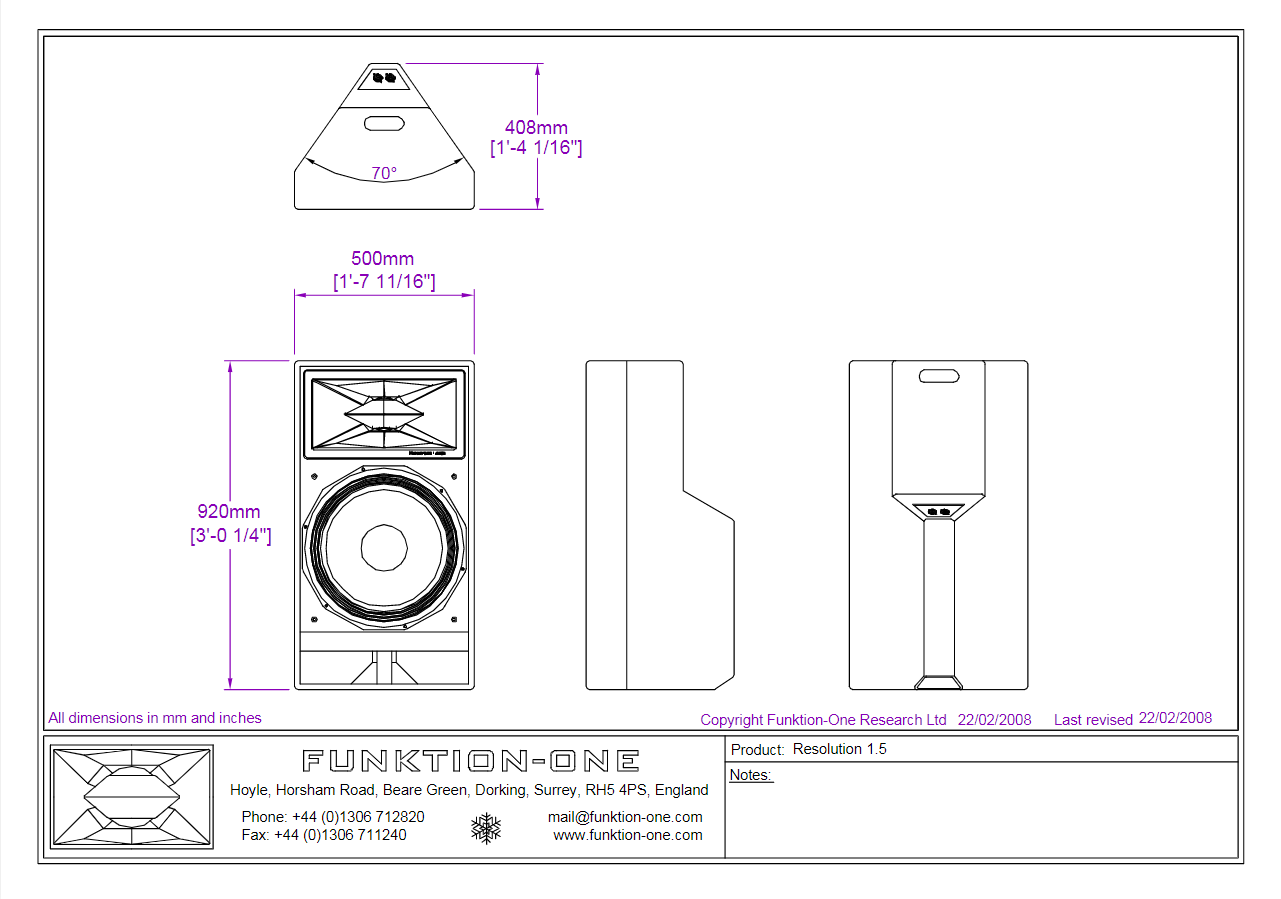

Resolution 1.5(图1)
