Project Details

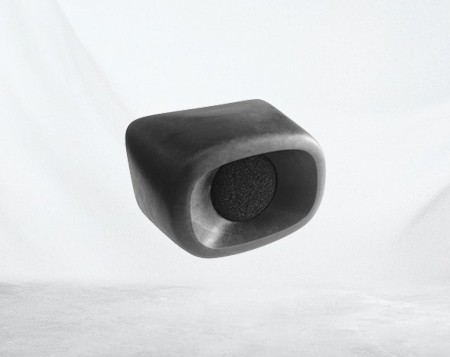

I 3 is an ultra-compact passive speaker. It consists of a single 3" cone driver. The proprietary acoustic waveguide design improves the efficiency and directivity of the medium and high frequencies. The 100 × 60 degree dispersion makes the speaker easy to adjust according to the installation, and can also use 2 to 6 units of vertical columns. This feature makes I 3 a true all-round work horse with almost unlimited possibilities!

The design and modeling concept of the shell was completed by the designer Mr. Stefan Lindfors, who has a wide variety of works all over the world. The injection-molded shell also uses UPM Formi's next-generation bio-based materials. This not only gives I 3 a unique and timeless appearance, but also gives I 3 its sturdiness, lightness and resonance-free characteristics.

I 3 has no crossover and reflection tuning, which results in a completely flat phase response and the most accurate transient response, without attenuation and common tuning-related problems. As a dedicated mounting enclosure, I 3 has 5 mm rigging points and array accessories.

Features :

l   100 × 60 degree coverage mode

l   Unique high-sensitivity 3" driver

l   Natural sound quality

l   Dedicated rigging system options

l   Ultra-simplified but rigid injection molding UPM molding

l   Shell black, white or custom color options

Application :

l  Small and medium installation

l Nightclubs and music bars

l Voice enhancement

l Use XD10 subwoofer to enhance music

Specification :

l   Frequency response ( -10 dB ) : 100 Hz – 20 kHz

l   Horizontal coverage ( -6 dB ) : 100 degrees

l   Vertical coverage ( -6 dB ) : 60 degrees

l   Maximum sound pressure ( cont / peak ): 105/112 dB (free space)

l   Sensitivity 1w/1m: 92 dB (free space)

l   Impedance: 16 ohms

l   Power handling: 20 W cont , 100 W peak

l   Recommended HP filter: 120 Hz, 12 dB/octave

Unit composition :

l   LF/HF : ( 1 ) × 3" neodymium magnetic cone driver, horn loading

Cabinet :

l   Cabinet: UPM Formi and steel plate

l   Grille: cold rolled steel grille, black foam

l   Connector: spring type

l   Dimensions: 185 mm × 126 mm × 130 mm

l   Weight: 0.8 kg
