Bar professional audio system FUNKTION ONE Mateng Audio

　　AX8 is a high-efficiency and high-efficiency speaker, and its simple structure is convenient for fixed installation. 8" driver with horn-loaded construction. AX 8 is the perfect choice for speech applications, providing excellent clarity and intelligibility. AX8 has high strength and waterproof construction. Comes standard with U-mount frame and stainless steel mesh.

　　High-definition broadcast speakers

　　Exceptional speech intelligibility and clarity.

　　Broadband 8" driver, minus 1" compression driver and surge-free crossover.

　　Lightweight and high strength.

　　Funktion - One design waterproof driver.

　　Equipped with stainless steel U mounting bracket and its accessories.

　　Extend from the inside—a section of PU speaker wire for connection.

　　A 100V rated version is available for purchase.

　　Driver 8"

　　Frequency band 180hz-8kHz

　　Sensitivity (1w@1m) 108dB

　　Recommended amplifier power (rms)*200W nominal impedance 16Ω

　　Frequency response ±3 dB: 180Hz- 8k Hz

　　Nominal diffusion angle: 50°horizontal×25°vertical

　　Weight: 13.5kg

　　Interface: terminal block

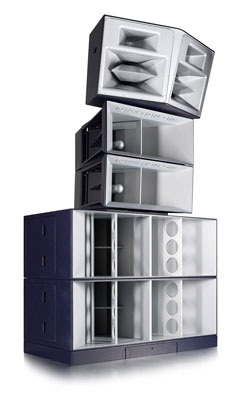

　　Dance Stack

　　The Dance Stack system of Funktion One is both sound and visual. All are works of art in the dance world.Dance Stack has been widely used all over the world such as the United States. Russia, Japan, China, South Korea and Brazil, etc. Many leading entertainment venues in Europe also use DanceStack as the cornerstone of their music. Funktion One's purely acoustically designed Dance Stack does not require an equalizer to adjust the tone, so as to avoid the frequency response depression and the phase interference of each speaker. .This incredible sound can be converted. There is no distortion and no ear-piercing sound, giving customers of entertainment venues all over the world full devotion to Dance stack music. Dance stack has a variety of combination options, and it will always be suitable for different venues.

　　The Dance Stack system has an incredible effect. The sound is as natural and pure as breathing. Whether you watch Dance Stack from a high place or a low place, you will be attracted by its high-tech appearance.

　　The following are the combinations with the most venue choices:

　　DS1: 3 x F218.1 x DSI5. 1 x 0S210

　　DS3: 2x lnfabass 218. 1 x Double lnfrah orn. 2x F215, 1 x0 S15.

　　1 x 0S210

　　0S4: 2xF221 . 2 x 0Si5, 1x DS2 10

　　The company has established a complete customer service system, set up a customer service center, has a professional technical service team, sales team, installation and commissioning technical team, and has the ability to provide customers with satisfactory design and technical services; extensively collect market information and customer information , Handle customer complaints, and establish a communication bridge with customers.
