Project Details

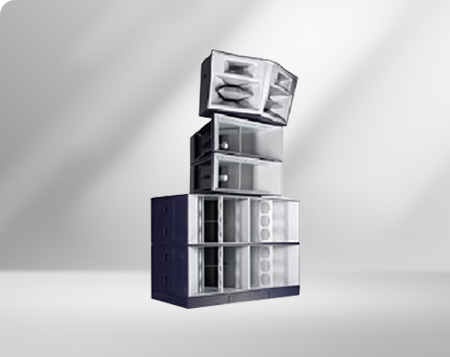

Funktion One's Dance Stack system is a work of art in the world of dance whether it is sound or visual. Dance Stack has been widely used all over the world, such as: the United States, Russia, Japan, China, South Korea, Brazil and so on. Many leading entertainment venues in Europe also use Dance Stack as the cornerstone of their music. The Dance Stack of Funktion One's purely acoustic design does not require the use of an equalizer to adjust the tone, so as to avoid the problem of depression of the frequency response and phase interference between the speakers. This incredible sound, convertible, no distortion and unpleasant sound, gives customers all over the world entertainment venues' full devotion to Dance Stack music. Dance Stack has a variety of combinations to choose from, and it will always be suitable for different venues.

The Dance Stack system has incredible effects, the sound is as natural as breathing and the tone is pure. Whether you go to watch Dance Stack at high or low places, you will be attracted by its high-tech appearance.

The following is the combination of the most places to choose:

DS1：3×F218、1×DS15、1×DS210

DS3 ： 2 × lnfrabass 218、1 × Double Infrahorn 、 2 × F215、1 × DS15、1 × DS210

DS4：2×F221、2×DS15、1×DS210

Audio model	driver	Frequency band	Frequency response ±3dB	Sensitivity 1w@1m	Recommended power amplifier （rms）*	Nominal impedance	weight	interface
DS210	2×1" 2×10"	5k-20kHz 227-5kHz	200-20kHz	108dB 109dB	300W 1050W	2×16Ω total 8Ω 2×8Ω total 4Ω	60kg	2 × Speakon NL4
DS15	15"	105-227Hz	90-360Hz	107dB	1150W	8Ω	49kg	2 × Speakon NL4
F215	2×15"	45-105Hz	40-250Hz	105dB	2100W	2×8Ω total 4Ω	70kg	2 × Speakon NL4
F218	2×18"	45-105Hz	40-280Hz	105dB	2400W	2×8Ω total 4Ω	81.5kg	2 × Speakon NL4
F221	2×21"	20-95Hz	40-180Hz	107dB	3600W	2×4Ω total 2Ω 2×8Ω total 4Ω	130kg	2 × Speakon NL4
Infrabass	2×18"	20-80Hz	25-80Hz	103dB	2800W	2×8Ω total 4Ω	90kg	2 × Speakon NL4
