DS 210Sound bar Vendor

The DS 210 speaker includes dual 10 " axe mid-high drivers and dual 1.4" compression drivers ( Funktion-One's unique high-frequency crossover point and minimum distortion ) .

Project Details

The DS 210 speaker includes dual 10" axe mid-to-high drivers and dual 1.4" compression drivers (Funktion-One's unique high-frequency crossover point and minimum distortion). Usually used in the dance hall series with DS15 mid-low audio speakers and Funktion-One high-efficiency bass speakers design configuration. This provides unparalleled clarity and efficiency for the main ballroom series components, making the music heard more real than ever.



characteristic:

•Unique patented design

• High-efficiency horn load type

• The high and middle frequency bands that make up the ballroom series

• Funktion-One design neodymium magnet drive

• Advanced passive crossover options

•Has a hoisting version

• The waveguide can be rotated 180°

driver

Frequency band

Sensitivity

1w@1m

Recommended power amplifier

(rms)*

Nominal impedance

2×10"

227Hz-4kHz

108dB

500W

2×1.4"

4kHz-above

109dB

150W



*AES standard

Frequency response ±3dB:

170Hz-18kHz

weight:

64kg(141lbs)

Nominal diffusion angle:

100° horizontal × 25° vertical

structure:

15mm birch compression board

interface:

2 × Speakon NL4

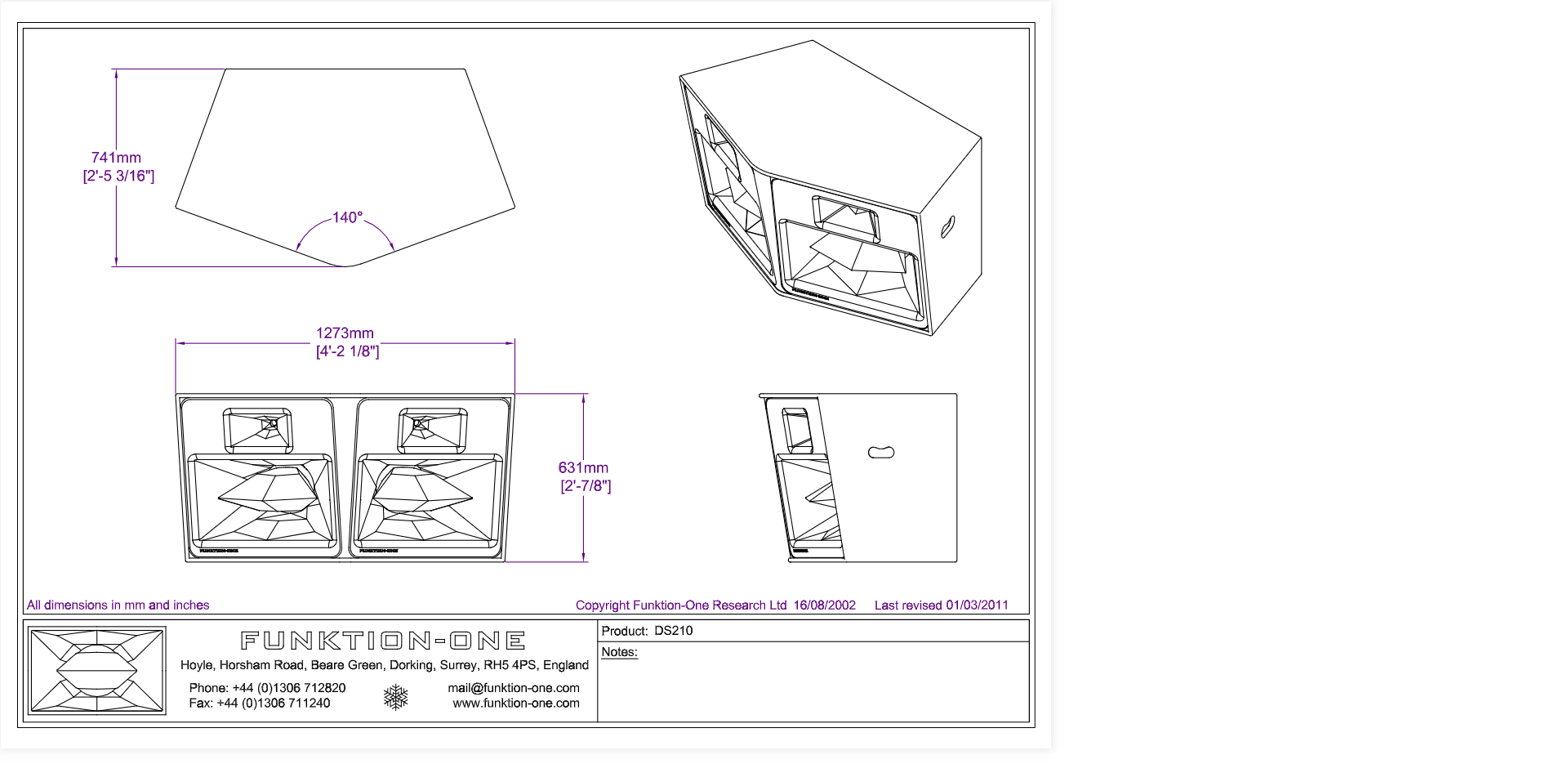

DS 210(图1)
