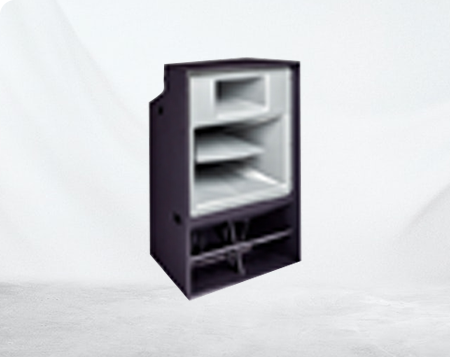

Evolution 7T is a pole of high intensity is used to touring speaker, incredibly compactness and high output.
Evolution 7T is an extremely high-intensity speaker for mobile performances, with incredible compactness and high output. EVO 7T has the characteristics of full horn loading, with 15-inch mid-low frequency, 10-inch mid-frequency with Funktion One logo horn and 1.4-inch compression high-frequency unit. Evolution 7T has a nominal horizontal diffusion angle of 40° (actually 30°). When three EVO 7Ts are used in combination, a perfect coverage of 100° can be obtained, which is suitable for an audience of about 2500 people.
Perfect for live performances and dance activities, the EVO 7T mobile performance system perfectly interprets the ultimate sound quality of Funktion One. We recommend using Funktion One subwoofer series speakers to match it.
characteristic:
• Full horn loading, extremely efficient
• Three-way full frequency
• Funktion One design unit
• The whole body is made of lighter neodymium magnets
• Especially used for mobile performances and integrated hanging system
• Optional pulley version
• Optional sturdy appearance grid
driver | Frequency band | Sensitivity 1w@1m | Recommended power amplifier （rms）* | Nominal impedance |
15" | 50/80-200Hz | 103dB | 400W | 8Ω |
10" | 200-4kHz | 108dB | 250W | 16Ω |
1.4" | 4kHz-above | 109dB | 75W | 32Ω |
*AES standard
Frequency response ±3dB: | 55Hz-20kHz |
weight: | 70kg（154lbs） |

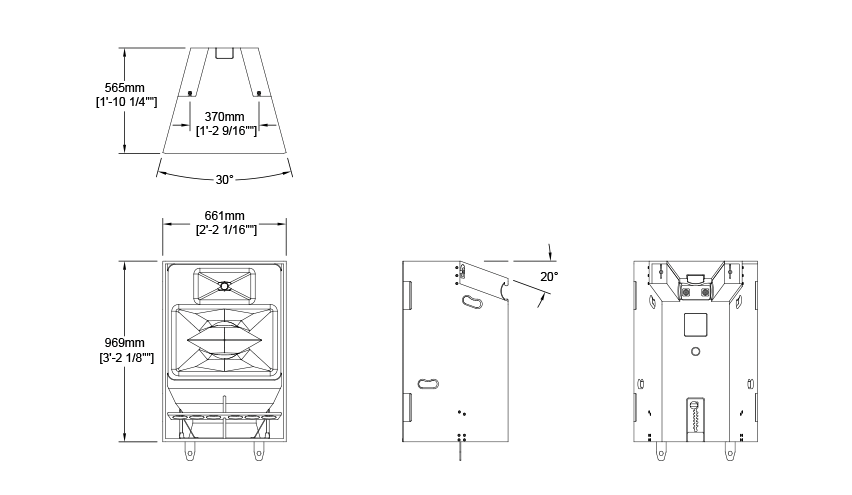

Nominal diffusion angle: | 40° horizontal×20° vertical |
interface: | 2 × Speakon NL8 |
