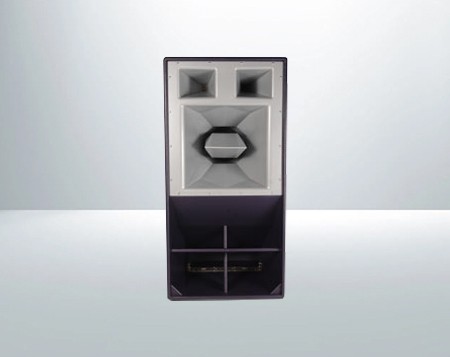

Resolution 5T is a a very high efficiency, three-way, narrow diffusion angle, long throw, high / medium / low-frequency three-way flow point source speaker system, a unique phase plug and waveguide Patent ax, not only provides the order Incredibly high efficiency and controlled projection angle, it also improves the high frequency output of the 8" IF driver.
Resolution 5T is a very high-efficiency, three-way, narrow diffusion angle, long-distance projection, high/middle/low-frequency three-way point source flow system speaker. The patented unique axe phase plug and its waveguide not only make it difficult to enter Confident high efficiency and controlled projection angle also increase the high frequency output of the 8" IF driver. This means that compared to the traditional compression driver, the crossover point can be increased to 6kHz and dramatically reduced Distortion. With its highly controlled diffusion angle and focus projection, the coverage of the entire venue can be arranged accurately and simply by simply setting up a speaker array. Unwanted reflections are eliminated, and the high definition and height of the speakers are retained. Language intelligibility. This system is very flexible for different applications, from 500 people to large-scale music festivals. Resolution 5T has built-in revolutionary army hoisting system hardware to minimize the weight and appearance as small as possible. It can improve installation efficiency and is easy to use for hanging or stack installation. The R5T system is very economical and effectively reduces the production budget and freight space. In short, R5T provides accurate and high-quality sound, suitable for all Various types of music.
characteristic:
• Seamless point source array system speaker
• Full horn load design, high-performance speakers
• Funktion-One design neodymium magnet drive
•Built-in box hoisting system
• Built-in speaker cable, hidden in a small hole behind the speaker when not in use
• Same size as Resolution 4 and 18
• Standard configuration wheel plate, gray or black cloth mesh options
driver | Frequency band | Sensitivity (1w@1m) | Recommended power amplifier (Rms)* | Nominal impedance |
12" | 114-445Hz | 105dB | 300W | 8Ω |
8" | 445-7k55Hz | 111dB | 200W | 16Ω |
1" | 5k77Hz-above | 113dB | 100W | 16Ω |
*AES standard
Frequency response ±3dB: | 114Hz-18kHz |
weight: | 49kg (108lbs) |
Nominal diffusion angle: | 25°horizontal×20°vertical |
interface: | EP6 female socket and an EP6 male plug audio lead |
